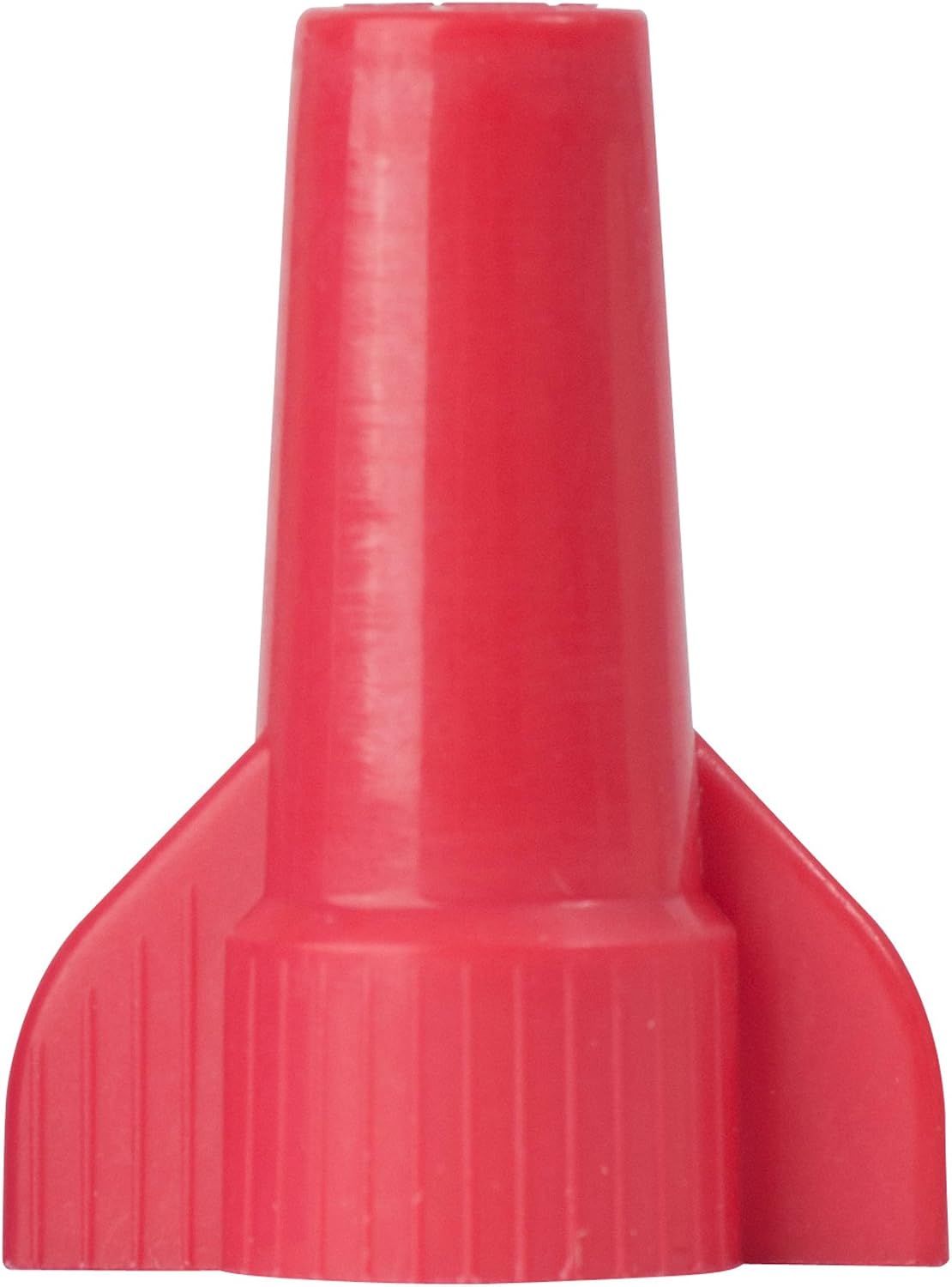

Gardner Bender 13-086 WingGard Twist-On Wire Connectors, 22-6 AWG, Electrical Wire Nut, 500 pk, Red
4.5 (23 items)
Limited Time Sale$19.61 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211240950 | Release Date | 2026/04/04 | List Price | $13.08 | Model Number | 211240950 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description Winggard color-coded twist-on wire connectors. Unsurpassed quality and durability in a high-leverage, easy-on wing-type design. Wings are knurled for a sure grip and offset from centerline for greater twisting leverage. Square-wire plated spring instantly adjusts to the shape and size of the splice. Flame-retardant properties resist heat distortion up to 105 DegreeC (221 degreef). From the Manufacturer Winggard color-coded twist-on wire connectors. Unsurpassed quality and durability in a high-leverage, easy-on wing-type design. Wings are knurled for a sure grip and offset from centerline for greater twisting leverage. Square-wire plated spring instantly adjusts to the shape and size of the splice. Flame-retardant properties resist heat distortion up to 105 degreec (221 degreef).
- DESIGNED TO LAST: Wings are knurled for a sure grip and offset from centerline for greater twisting leverage. Square wire spring grabs and holds wires for secure connections.
- DESIGNED TO LAST: Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- FLAME-RETARDANT TEMPERATURE RATING: Flame-retardant properties resist heat distortion up to 105°C / 221°F
- HIGH-DIELECTRIC: shell features deep skirt design to prevent exposure of bare wire - COPPER TO COPPER connections only
- STANDARD RATING: 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
- UL LISTED: Canadian and U.S. requirements (connections rated at 600V Max for building wiring and rated at 1000V Max in lighting fixtures/luminaries and signs)
- WIRE RANGE: 2 #20 (Min) to 4 #10 (Max)
- Unsurpassed quality and durability in a high-leverage
- Copper-to-copper connections only
- WireGard-Color-Coded Screw-On Wire Connectors
| UPC | 032076130862 |
|---|---|
| Color | Red |
| Gauge | 6.0 |
| Model | 13-086 |
| Terminal | Twist Terminal |
| Stud Size | #10 |
| Brand Name | Gardner Bender |
| Unit Count | 500.0 Count |
| Item Weight | 2.1 Pounds |
| Manufacturer | Actuant |
| Material Type | Plastic |
| Connector Type | Twist |
| Item Type Name | Winggard Twist-On Wire Connector, 22 - 6 Awg, 300 V, 600 V, Thermoplastic |
| Maximum Voltage | 600 Volts |
| Contact Material | Copper |
| Specification Met | UL |
| Temperature Rating | 221 degree fahrenheit |
| Included Components | Rough Plumbing;Parts and Repair;plumbing-hoses |
| Insulation Material Type | Thermoplastic |
| Item Dimensions L x W x H | 16.25"L x 16"W x 20.88"H |
| Global Trade Identification Number | 00032076130862 |
