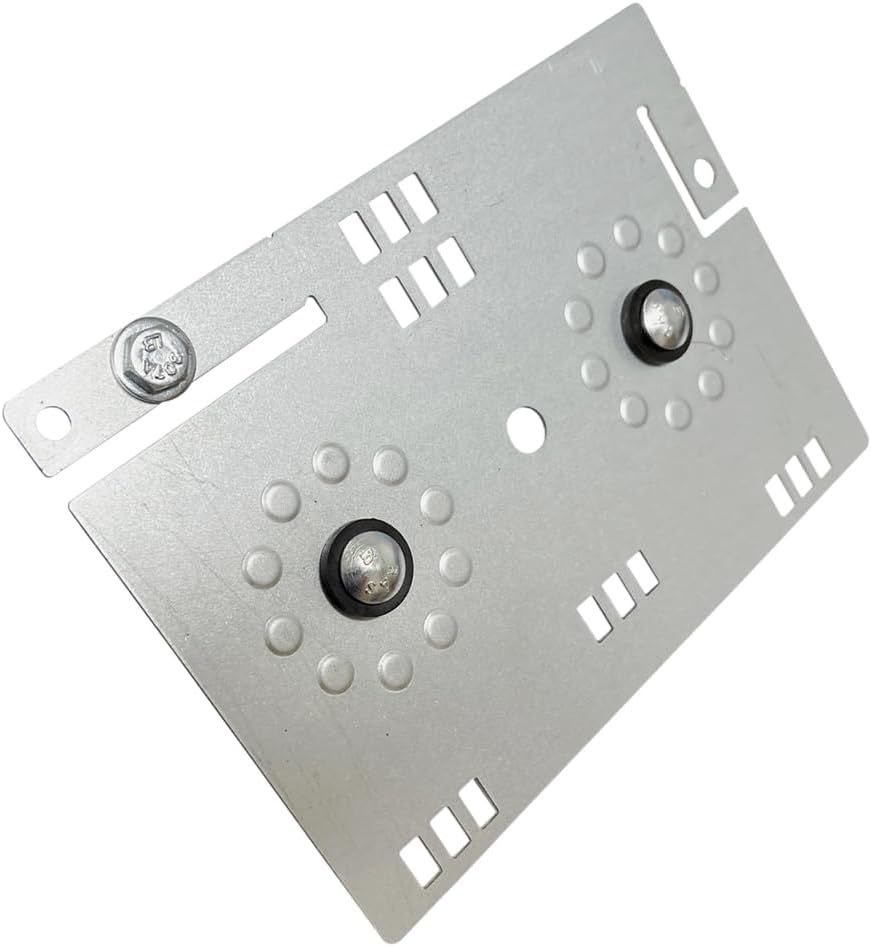

Battery Charger Rectifier - Rated 100A Continuous / 600A Boost, Negative Base, Replaces Century 865-926-666, 865-682-666, by Power Forged (696613)

Power Forged 100 Amp Negative Base Rectifier - Replaces Century 865-926-666, 865-682-666 - Rated for chargers up to 100A continuous output / 600A boost - Fully assembled and tested - Dual diode assemblies, each with an array of 10 x 50A diodes, for a total of 20 diodes. Redundant capacity is designed in - if individual diodes fail, load is shifted to remaining functional diodes - Designed for chargers with the negative lead/clamp assembly connected to the rectifier heat sink plate, i.e. - Solar, Century, Dayton, Goodall brand chargers - Full-wave rectification - Designed to mount with insulated standoffs (not included), or insulated center bolt (included) - Includes nuts and washers for transformer secondary connection - For 80 Amp version of this rectifier, see 696611 - Can be repaired with 696615 Rectifier Rebuild Kit Specificatons: Continuous Duty Rating: 100 Amp Boost Rating: 600 Amp Diode Arrays: Dual 10 x 50A/200PRV 10MM button (20 diodes total), each diode connects to the array via an independent, fusible link Depth: 1.25" (Includes length of secondary attachment studs) Height: 5.108" Width: 7.369" Weight (lbs.): 0.75 Rectifier Cross Reference: Century 865-926-666 (thin wire connections), 865-682-666 (heavy duty wires) Grainger TT865682666G, Westward TT865682666G Goodall 51-236 Fits Chargers: Models with 865-926-666 (thin wire connection): 141-289-000 Century 87402 50/25/2/220 amp portable 141-176 Century 40/2/200 amp battery charger w/test 141-186 Century 40/2/200 amp battery charger 141-187 Century 40/2/200 amp battery charger w/test 141-188 3Z632B Dayton 60/2/250 amp battery charger 141-190 Century 60 amp fleet battery charger 141-185 Matco 40/120 amp battery charger 141-198 71836 Sears 50/170 amp battery charger 141-202 Solar 480 60/40/2/250 amp battery charger 141-204 Century 60/2/250 amp battery charger 141-205 Power-Mate MC-18 Atlas 60/2/250 amp battery charger w/ test 141-206 Century 60 amp fleet battery charger 141-219 Century 660 87603 60/40/30/225 amp fleet battery charger 141-219-001A Century fleet battery charger (horizontal gauges) 141-219-001H Century 87603H fleet battery charger 141-224 Century 40/2/200 amp battery charger 141-227 Century 40/2/200 amp battery charger 141-228 Century 60 amp fleet battery charger 141-229 Goodall 60/2/250 amp battery charger w/test 141-230 Goodall 60/40/2/250 amp battery charger 141-234 Dayton 3Z991B 40/2/200 amp battery charger 141-252 Sears 716-500 battery charger 141-253 Sears 716-520 battery charger 141-254 Sears 50313 battery charger 141-255 Sears 71651 40/2/200 amp battery charger 141-260 Century 40/2/200 amp battery charger 141-267 Sears 71654 50/30/2/225 amp portable battery charger 141-268 Century 87502 40/20/2/200 amp battery charger 141-269 Century 220/50/25/2 amp battery charger 141-273 Century 87511 50/25/2/220 amp battery charger w/test 141-277-000A Century 87402 50/25/2/220 amp portable battery charger 141-280 Century 40/2/200 amp battery charger 141-281 Century 40/2/200 amp battery charger 141-282 Century 40/2/200 amp battery charger 141-297-000 Century 87602 60/40/2/250 amp battery charger w/ volt meter 141-297-000H Century 60 amp battery charger w/test 141-297-003 Matco BC95 60/40/2/250 amp battery charger w/ volt meter 141-297-902 Century 87602C 60/40/2/250 amp battery charger w/ volt meter 141-302-902 Century 87422-A 40/15/2/200 amp battery charger 141-302-000H Century 87422 40/15/2/200 amp battery charger 141-304-000 Century 87421 40/15/2/200 amp battery charger (no timer) 141-304-901 Century 87421C 40/15/2/200 amp battery charger (no timer) 141-304-901H Century 87421C 40/15/2/200 amp battery charger (no timer) 141-305-000H Century 87423 40/15/2/200 amp battery charger 141-307 Goodall 51800 60/40/2/250 amp battery charger 141-309 Canadian Tire 11-9996 50/30/2/225 amp battery charger 141-313-901 Canadian Tire 11-1563-8 60/40/2/250 amp battery charger w/ test (vertical meters) 141-313-902 Canadian Tire 11-1563-8 60/40/2/250 amp w/ test (horiz meters) 141-314-901 Canadian Tire 11-9998-6 40/2/200 amp battery charger (vertical meters) 141-314-902 Canadian Tire 11-9998-6 40/2/200 amp battery charger (horiz meters) 141-180 Solar 360 40/2/200 amp battery charger 141-181 Solar 550 60/40/2/250 amp battery charger w/ volt meter 141-182 Solar 480 60/40/2/250 amp battery charger 141-183 Solar 660 60/40/30/225 amp fleet battery charger 141-201 Solar 550 60/40/2/250 amp battery charger w/ volt meter 141-203 Solar 660 60/40/30/225 amp fleet battery charger 141-221 Solar 480 60/40/2/250 amp battery charger 141-245 Solar 840 40 amp gang battery charger 141-283 Solar 670 60/40/30/225 amp battery charger w/large volt meter 141-284 Solar 580 .3 to 60/250 amp (6/12volt) 10 amp fully-automatic battery charger 141-285 Solar 330 40/2/200 amp battery charger 141-286 Solar 440 40/15/2/200/300 amp battery charger w/ volt meter 141-287 Solar 560 60/40/2/250 amp battery charger w/ volt meter & indicator lights 141-288 Solar 670 60/40/30/225 amp battery charger w/large volt meters 141-304-902 Solar 330 40/2/200 amp battery charger 141-310 Solar 580 .3 to 60/250 amp (6/12volt) 10 amp fully-automatic 141-311 Solar 560 60/40/2/250 amp 6/12 Volt charger/starter/tester w/ timer 141-384 Solar 1440 battery charger 141-225 Century 87422 40/2/200 amp battery charger 141-388-801 OS6150 60/40 amp 6/12/24 Volt battery charger with engine start K3149-1 Century 40/15/2/200/130 amp 6/12 Volt battery charger starter tester K3150-1 Century 60/40/2/250/185 amp 6/12 Volt battery charger starter tester K3151-1 Century 60/40/30/160/225 amp 6/12/24 Volt fleet battery charger starter 3LE84 Dayton 580 .3 to 60/250 amp (6/12volt) 10 amp fully-automatic battery charger Models with 865-682-666 (heavy duty wires): 141-189 BCH067A Mac 60/40/2/250 amp battery charger 141-310 Solar 580 .3 to 60/250 amp (6/12volt) 10 amp fully-automatic 141-197 71832 Sears 50/2/200 amp battery charger 141-306 Century 87250 40 amp phase control battery charger 141-308 Solar 840 40 amp gang charger 141-324 Century 87424 battery charger 141-313-901 Canadian Tire 11-1563-8 60/40/2/250 amp battery charger w/ test (vertical meters) 3LE84 Dayton 580 .3 to 60/250 amp (6/12volt) 10 amp fully-automatic battery charger 3LE81 Dayton 60/40/2/250 amp battery charger 3LE82 Dayton 60/40/225 amp 6/12/24 volt fleet battery charger 3LE83 Dayton 40/15/2/200/130 amp 6/12 volt battery charger 1JYT9 Dayton 40/15/2/200/130 amp 6/12 volt battery charger 1JYU1 Dayton 60/40/2/250/130 amp 6/12 volt battery charger 1JYU2 Dayton 60/250/130 amp 6/12 volt battery charger 1JYU3 Dayton 60/40/250 amp 12/24 volt battery charger 141-303-901 Century 87530 50/30/2/225 amp battery charger 141-220 Century 60/40/2/250 amp battery charger w/ volt meter 87602 141-273 Century 87511 50/25/2/220 amp battery charger w/test 141-305-901 Solar 440 40/15/2/200/300 amp w/ volt meter

• Designed for chargers with the NEGATIVE lead/battery clamp assembly connected to the rectifier heat sink plate, i.e. - Solar, Century, Dayton, Goodall brand chargers
• Replaces Century 865-926-666, 865-682-66 rectifiers

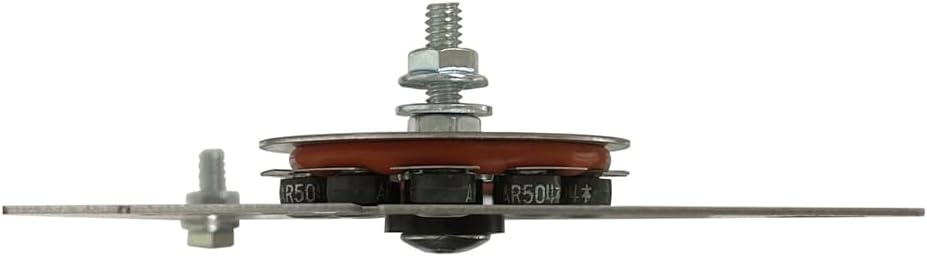

• Dual diode assemblies, each with an array of 10 x 50A diodes, for a total of 20 diodes. Redundant capacity is designed in - if individual diodes fail, load is shifted to remaining functional diodes
• Rated for chargers up to 100A continuous output / 600A boost
• Includes nuts and washers for transformer secondary connection
• Designed to mount with insulated standoffs (not included), or insulated center bolt (included)
• Full-wave rectification
• For 80 Amp version of this rectifier, see 696611
• Can be repaired with 696615 Rectifier Rebuild Kit
• Sold, Shipped, and Supported by PLP Battery Supply in Murphysboro, IL, USA. Questions? We are real people, based in the U.S.A. Our phone number and email is included with every product.
